RAM-109HU_RAM Horizontal 6" Swing Arm Mount for Fishfin
RAM-109HU_RAM Horizontal 6" Swing Arm Mount for Fishfin
Regular price
$77.49 USD
Regular price
Sale price
$77.49 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
UPC:
793442010910
Mfg Part #:
RAM-109HU
Availability:
In Stock
Part Number:
RAM-109HU
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

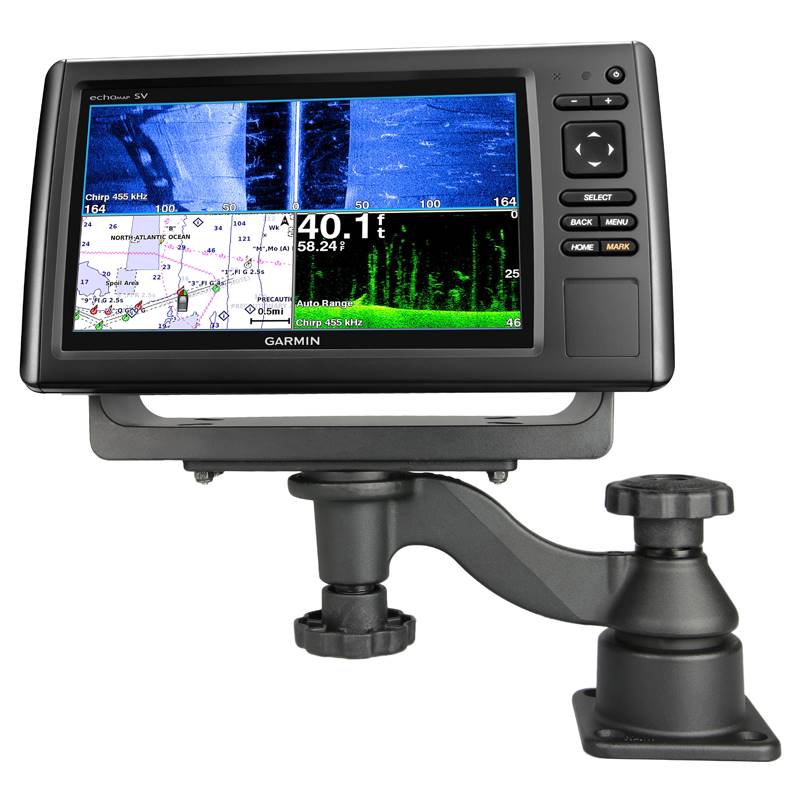

The RAM-109HU consists of a 6" long bent swing arm mounted on a horizontal surface base. At the
device mounting end is a rectangular 6.25" x 2" plate. There are two pivoting points on the mount:
one at the base of the swing arm and one at the center of the rectangular plate. Each pivoting point
allows a complete 360-degree rotation.
PRODUCT DIMENSIONS
Overall Height: 5.41"
Total Swing Arm Length: 6"
HOLE PATTERN
Top Plate: See Drawing
Bottom Plate: 2.5" x 2.5"
PLATE SIZE
Top Plate: 6.25" x 2"
Bottom Plate: 3.47" x 3.47"
WEIGHT CAPACITY
8 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
The included plate is a universal mounting bracket with a selection of mounting hole locations. In
certain applications additional holes may need to be drilled for proper fit with your electronic
device.
FEATURES:
Universal drill-down fishfinder mounting solution features 6" swing arm for ideal device placement
Two pivot points allow for complete 360-degree rotation
Made of powder-coated steel and high-strength composite
Backed by a lifetime warranty
WEIGHT
2.09 lbs.
device mounting end is a rectangular 6.25" x 2" plate. There are two pivoting points on the mount:
one at the base of the swing arm and one at the center of the rectangular plate. Each pivoting point
allows a complete 360-degree rotation.
PRODUCT DIMENSIONS
Overall Height: 5.41"
Total Swing Arm Length: 6"
HOLE PATTERN
Top Plate: See Drawing
Bottom Plate: 2.5" x 2.5"
PLATE SIZE
Top Plate: 6.25" x 2"
Bottom Plate: 3.47" x 3.47"
WEIGHT CAPACITY
8 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
ADDITIONAL INFORMATION
The included plate is a universal mounting bracket with a selection of mounting hole locations. In
certain applications additional holes may need to be drilled for proper fit with your electronic
device.
FEATURES:
Universal drill-down fishfinder mounting solution features 6" swing arm for ideal device placement
Two pivot points allow for complete 360-degree rotation
Made of powder-coated steel and high-strength composite
Backed by a lifetime warranty
WEIGHT
2.09 lbs.
Dimensions:
- Center of knob to center of ball socket: 6"
- Overall Length of swing arm assembly: 10.75"
- Overall Height: 5.6"
- Height from base to top of knob: 4.91"
- Material:Powder Coated Marine Grade Aluminum
- Note:The "U" in the part number reflects product packaged in poly bag. The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
- Weight:2.09 lbs.
