RAM-108-BU_RAM Trolling Motor Stabilizer with Strap Hos
RAM-108-BU_RAM Trolling Motor Stabilizer with Strap Hos
Regular price
$59.99 USD
Regular price
Sale price
$59.99 USD
We have new inventory arriving weekly, If you see low or no inventory it may change tomorrow. Please call us at 1.800.789.0087 or email us at sales@custommounts.com for current inventory status.
Ball Size:
C Size 1.5"
UPC:
793442000126
Mfg Part #:
RAM-108-BU
Availability:
In Stock
Part Number:
RAM-108-BU
Quantity
Couldn't load pickup availability
Share
- Description
- Additional Info
- Components

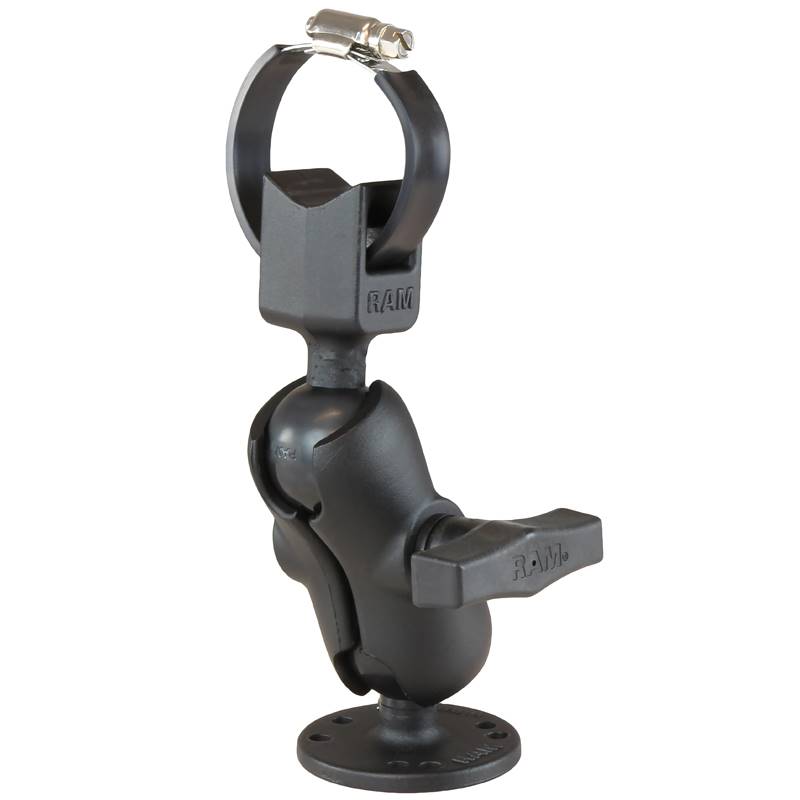

The RAM-108-BU consists of a adjustable strap clamp base, short double socket arm and 2.5" diameter
round base that contains the universal AMPs hole pattern. The strap will accommodate rails from 1"
to 2.1" in diameter. Included is a rubber protection strip to help reduce vibration and to prevent
scratching of the mounting surface.
HARDWARE INCLUDED
(1) #20 Worm Drive Strap Clamp
(1) #28 Worm Drive Strap Clamp
(1) 6" Rubber Strip
PRODUCT DIMENSIONS
Overall Height: 6.875"
CLAMP RANGE
1" - 2.1" diameter
SOCKET-TO-SOCKET LENGTH
2.5"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
1.15 lbs.
round base that contains the universal AMPs hole pattern. The strap will accommodate rails from 1"
to 2.1" in diameter. Included is a rubber protection strip to help reduce vibration and to prevent
scratching of the mounting surface.
HARDWARE INCLUDED
(1) #20 Worm Drive Strap Clamp
(1) #28 Worm Drive Strap Clamp
(1) 6" Rubber Strip
PRODUCT DIMENSIONS
Overall Height: 6.875"
CLAMP RANGE
1" - 2.1" diameter
SOCKET-TO-SOCKET LENGTH
2.5"
HOLE PATTERN
4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
BALL/SOCKET SIZE
C Size (1.5")
WEIGHT CAPACITY
4 lbs
MATERIALS
Marine-grade aluminum
PACKAGING TYPE
Poly Bag
WEIGHT
1.15 lbs.
Strap Dimensions:
- 1" to 2.1"
- Material:Powder Coated Marine Grade Aluminum
- Ball Size:C Size 1.5" Rubber Ball
- Note:Part number reflects product packaged in clear clam shell for store shelf display.
- Weight:1.15 lbs.
