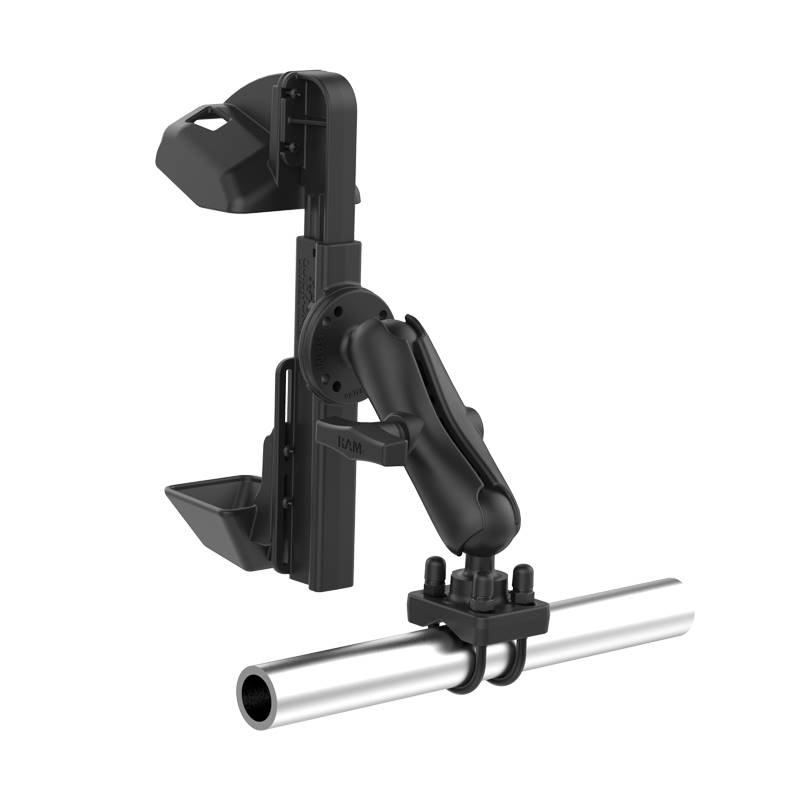

RAM-101-235-1-ZE9U_RAM Quick-Draw Mount for Zebra TC800

This RAM Quick-Draw is designed specifically for
the Zebra TC8000 and TC8300 and consists of a double socket arm, round 2.5 INCHES diameter round base with the
universal AMPS hole pattern and 4 INCHES clamp base. The clamp base will wrap around a maximum width of 4 INCHES and
is tightened by screwing the two plates together with the included nuts and bolts. Rubber ball, socket
technology dampens shock and vibration, as well as allows for almost infinite adjustment, perfect
viewing angles.

FEATURES

Spring-loaded RAM Quick-Draw holder provides easy removal of your Zebra TC8000 and TC8300

2.5 INCHES round plate connects to RAM device holders containing the universal AMPS hole pattern

Includes 4 INCHES clamping base for posts and a medium length, C size RAM double socket arm; ball and socket technology allows for near-infinite adjustability

Made of high-strength composite and stainless steel hardware for durability and reliability in the most demanding environments

Backed by a lifetime warranty

Hardware Included
Assembly Hardware (2) 5/16 INCHES-18 x 3 INCHES Machine Screws (2) 5/16 INCHES-18 Nylock Nuts

Clamp Range
4 INCHES max width

Socket-to-Socket Length
4.66 INCHES

Ball/Socket Size
C Size (1.5 INCHES)

Weight Capacity
Standard Use: 4 lbs Heavy-Duty Use: 3 lbs

Materials
Marine-grade aluminum

Packaging Type
Poly Bag
