RAM-VP-SW2F-8-2461_RAM 8” Upper Pole and Double Ball 75

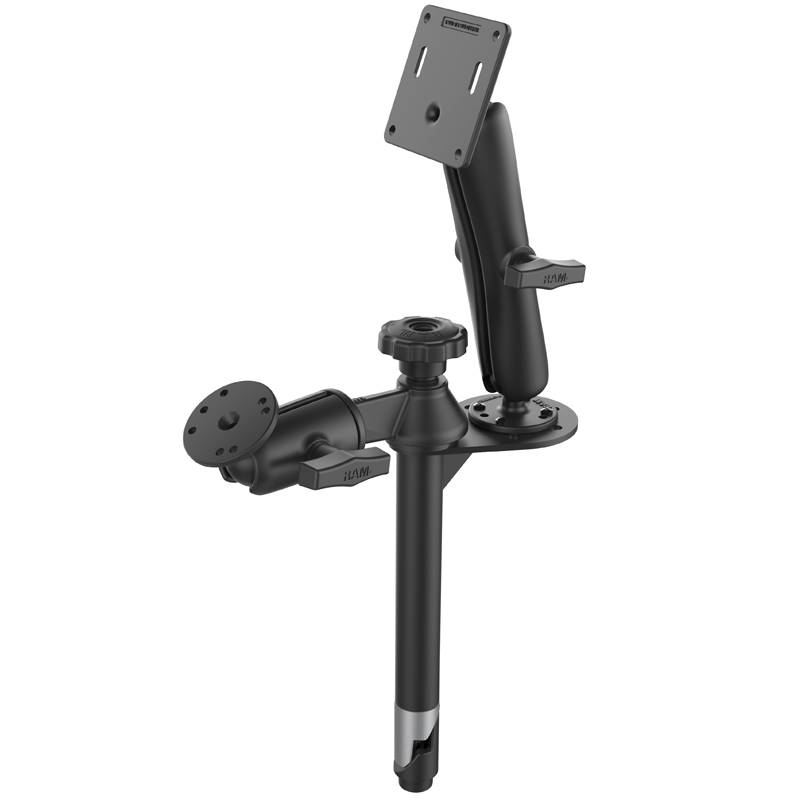

This in-vehicle GDS View monitor and GDS Keyboard mount features a RAM Tele-Pole 8” upper pole
with flange, 6” swing arm, and a long C size double socket arm. Easily connect your GDS Keyboard
to the swing arm, and attach the GDS View monitor to the flange and double socket arm via the
included ball bases. With the ability to swing the keyboard out of the way when not in use as well
as position the monitor at nearly any angle, ensure your mobile workstation is backed by RAM Mounts
for strength, durability, and versatility.

HARDWARE INCLUDED
Assembly Hardware
(4) 5/16"-18 x 1" Carriage Bolts
(4) 5/16"-18 Hex Nuts
(4) 5/16" Flat Washers
(4) 5/16" Split Lock Washers
(4) Rubber Caps

HOLE PATTERN
Tele-Pole: 2.625" x 2.625"
VESA Plate: See Drawing

BALL/SOCKET SIZE
C Size (1.5")

MATERIALS
Powder coated steel
Marine-grade aluminum

PACKAGING TYPE
Box
